Electric Mountain Bike- Summit
Summit electric bike can turn any ride into any adventure. Around the neighbourhood or across town – you can do it all without worrying about long distances or steep hills.
Product Details
Motor: 250-Watt 36V Rear Hub Drive Motor
Range: 60km (Subject to ambient temperature, rider mass and rider style)
Battery: 250-Watt 36V 10AH Lithium Battery
Recharge Time: 6-8 Hours
Controller: LCD Controller
Drive System: Pedal Assist
Max Speed: 25km/h for most Countries (32km/h for selected Countries) – Limited due to country laws

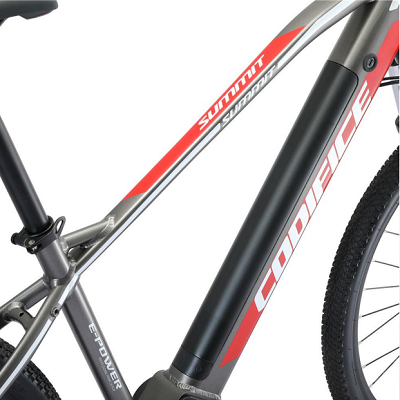

36V/14AH Removable Lithium Battery
36V/14AH Removable and hidden Lithium Battery, so you can bring the battery to your home or office to recharge. – Charger is included. Our charger supports 110v-220v voltage, as long as the voltage meets the requirements of the charger, the battery can be charged. – Charging time: Appro 6-8 hours Battery lock and power

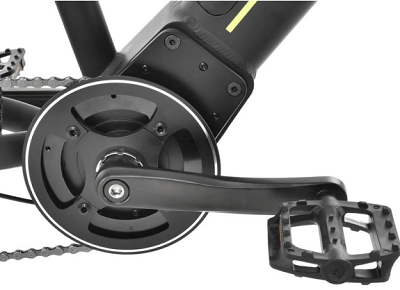

Mid-Drive Motor
Powerful 250 Watt Mid-Drive system delivering 80 N.m torque power. – Set speed limit according to the local regulations of any country, Maximum speed in power mode is programmable and can be adapted to the local laws. – Range up to 120 km. Powered by a 36V/14AH Removable and hidden Lithium Battery.

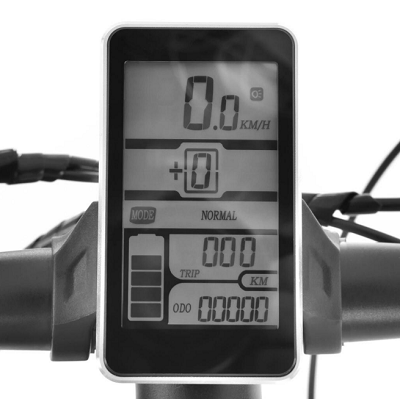

LCD Display
Choose between 5 levels of assistance, or ride without it completely – you’re always in control. Keep track of your trip distance, odometer and speed with this electric bikes LCD display

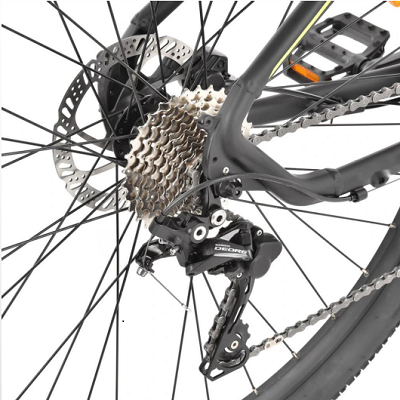

Shimano Deore 10 SP
The Shimano Deore 10-speed drivetrain provides smooth gear changes, keeps you safely riding with no slips or chain drops’

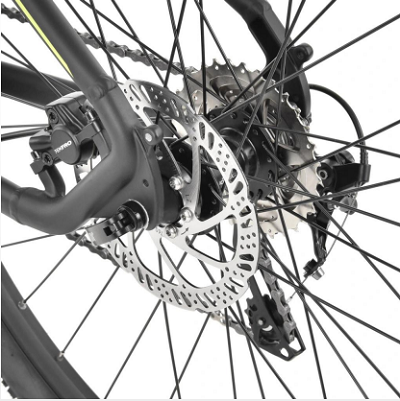

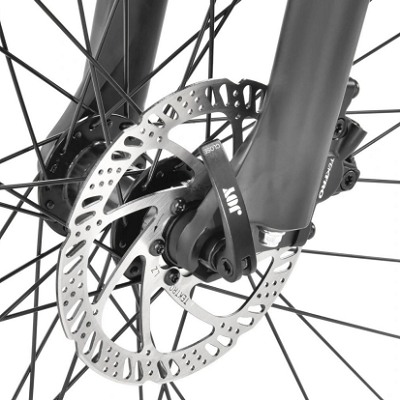

Disc Brake
Tektro aluminium hydraulic disc brakes with 160 millimetres rotors deliver precision stopping power in all on road and offroad conditions.

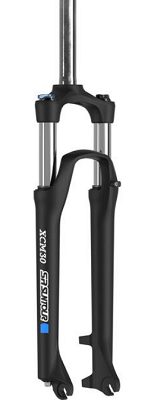

SR Suntour Suspension Fork
The SR Suntour suspension fork with remote lock out, you can tune your ebike to your comfort level: shock absorbing for rough roads or fully rigid for smooth paths. Helping you further personalize your electric biking experience.

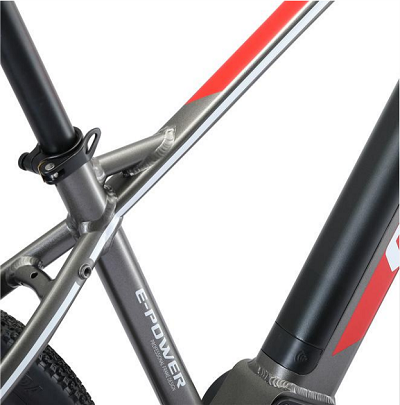

Aluminium Frame
Lightweight aluminium comfort-tuned geometry frame allows for a more upright rider position and the hydro-formed down-tube keeps the battery as low as possible For better stability and control
Technical Specifications
Frame: Aluminium, 29” MTB Electric Bike Geometry, internal cable routing, replaceable hanger.
Fork: SR Suntour, Aluminium, 29” Suspension fork, travel 100mm
Crank: 38T, Aluminium
Chain: KMC

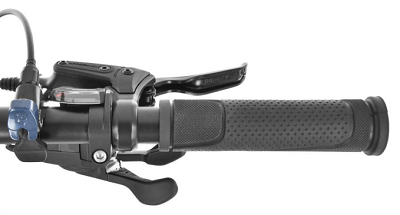

Shifters: Shimano Right Shifter Deore 10 Speed
Freewheel: Shimano Cassette Sprocket 10SP, 11-32T
Derailleur Rear: Shimano Deore 10 Speed
Rims: Aluminium, 29” X 1.5 X 13G X 36H
Front Hub: Aluminium, Sealed Bearing, M9, 36H Front & Rear Hubs
Sizes: 29”
Spokes: 13G, Stainless Steel
Tires: CST/ Kenda, 29” X 1.95”
Pedal: Nylon
Brakes: Tektro, Hydraulic Disc, Aluminium, 160mm Rotor
Handlebar: Aluminium, Swallow Type, 700 mm Width
Stem: Aluminium, 7◦ Rise
Headset: Threadless, Aluminium/Steel
Seat Post: Aluminium, 350mm, 30.4mm
Saddle: Sport, Selle Royal
